TSDF - Data storage for scalable processing of heterogeneous and geospatial time series

Martí Bosch (CEAT); Gionata Ghiggi (LTE); Son Pham-Ba and Charlotte Weil (ENAC-IT4R)

May 28, 2024.
Funded by the ETH Domain Open Research Data (ORD) Program

Motivation: dealing with (spatial) Time series data

Example spatial time series (TS) 🕐 data:

Consider 1 month of weather stations observations every 10 mins
Which data structure would you use?

station	1			…	33
variable	temperature	water_vapour	precipitation	…	temperature	water_vapour	precipitation
time
2021-01-01 00:00:00	2.2	99.0	0.2	…	3.4	92.0	0.1
2021-01-01 00:10:00	2.3	99.0	0.2	…	3.2	92.0	0.1
2021-01-01 00:20:00	2.4	99.0	0.1	…	3.2	92.0	0.2
…	…	…	…	…	…	…	…
2021-01-31 23:30:00	6.1	99.0	0.2	…	6.9	80.0	0.0
2021-01-31 23:40:00	6.1	98.0	0.3	…	6.9	81.0	0.0
2021-01-31 23:50:00	6.1	99.0	0.3	…	6.8	82.0	0.2

4464 rows × 99 columns

Wide data frame

Pros:
👍 Efficient TS 🕐 operations on index, e.g., df.resample
Cons:
👎Requires aligned TS 🕐
👎Cannot add station attributes, e.g., “geometry” 🌍 column
Alternatives?

Long data frame

	variable	temperature	water_vapour	precipitation
station	time
1	2021-01-01 00:00:00	2.2	99.0	0.2
	2021-01-01 00:10:00	2.3	99.0	0.2
	2021-01-01 00:20:00	2.4	99.0	0.1
	2021-01-01 00:30:00	2.4	99.0	0.2
	2021-01-01 00:40:00	2.5	99.0	0.2
…	…	…	…	…
33	2021-01-31 23:10:00	5.6	100.0	0.1
	2021-01-31 23:20:00	5.6	100.0	0.0
	2021-01-31 23:30:00	5.7	100.0	0.2
	2021-01-31 23:40:00	5.4	100.0	0.1
	2021-01-31 23:50:00	5.3	100.0	0.4

147312 rows × 3 columns

Long data frame

Pros:
👍 Flexible for unaligned TS 🕐
Cons:
👎TS 🕐 operations require a groupby approach
👎 station attributes, e.g., “geometry” 🌍 column would result in many repeated values
Alternatives?

Combine two objects

A wide time series data frame
A station attributes data frame/series, e.g., “geometry” 🌍

Vector data cubes: xvec

Vector data cubes: xvec

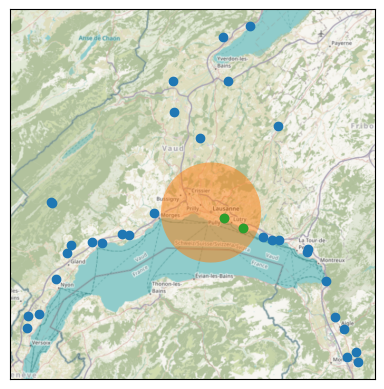

# e.g., stations within 10 km of Lausanne's center
query_geom = gpd.tools.geocode("Lausanne").to_crs(ds.station.crs).buffer(10e3)
ds.xvec.query("station", query_geom)

Vector data cubes: xvec

Pros:
👍 Efficient TS 🕐 operations on time index, e.g., ds.resample
👍 Efficient spatial 🌍 operations on spatial index
Cons:
Requires aligned TS 🕐
How to store to disk 💾? xvec/issues/26
pickle, joblib: Python only.
GIS formats: pros and cons of wide/long tables.

Summary

We could not find a tool to deal with:

unaligned time series
reliable disk storage, e.g., long term, cross-platform, cloud optimized…
station (sample) attributes, e.g., “geometry” 🌍

Proposed solution: Enter TStore

What is TStore

TStore is a Python library for flexible storage and processing of (spatial) TS data. Two key features:

TS 🕐 encapsulation: TS, TSDF, TSLong and TSWide objects to organize hetereogeneous (spatial) time series data into Python data frames
TS 🕐 storage: TStore is a hierarchically-structured specification to reliably and efficiently store (spatial) TS data based on Parquet (and GeoParquet)

Time series encapsulation

Consider a TS object representing a time-series. Then the long data frame becomes:

	data
station
1	TS[shape=(4464, 3),start=2021-01-01 00:00:00,e…
2	TS[shape=(4464, 3),start=2021-01-01 00:00:00,e…
3	TS[shape=(4464, 3),start=2021-01-01 00:00:00,e…
…	…
31	TS[shape=(4464, 3),start=2021-01-01 00:00:00,e…
32	TS[shape=(4464, 3),start=2021-01-01 00:00:00,e…
33	TS[shape=(4464, 3),start=2021-01-01 00:00:00,e…

Advantages

Flexibility:
👍 each station can have its own TS, e.g., useful with different temporal resolution, periods of maintenance (no data)…
👍 each TS object may be univariate or multivariate

	temperature	water_vapour	precipitation
station
1	TS[shape=(4464,),start=2021-01-01 00:00:00,end…	TS[shape=(4464,),start=2021-01-01 00:00:00,end…	TS[shape=(4464,),start=2021-01-01 00:00:00,end…
2	TS[shape=(4464,),start=2021-01-01 00:00:00,end…	TS[shape=(4464,),start=2021-01-01 00:00:00,end…	TS[shape=(4464,),start=2021-01-01 00:00:00,end…
3	TS[shape=(4464,),start=2021-01-01 00:00:00,end…	TS[shape=(4464,),start=2021-01-01 00:00:00,end…	TS[shape=(4464,),start=2021-01-01 00:00:00,end…
…	…	…	…
31	TS[shape=(4464,),start=2021-01-01 00:00:00,end…	TS[shape=(4464,),start=2021-01-01 00:00:00,end…	TS[shape=(4464,),start=2021-01-01 00:00:00,end…
32	TS[shape=(4464,),start=2021-01-01 00:00:00,end…	TS[shape=(4464,),start=2021-01-01 00:00:00,end…	TS[shape=(4464,),start=2021-01-01 00:00:00,end…
33	TS[shape=(4464,),start=2021-01-01 00:00:00,end…	TS[shape=(4464,),start=2021-01-01 00:00:00,end…	TS[shape=(4464,),start=2021-01-01 00:00:00,end…

TSDF object

cells TS are pandas ExtensionDtype
columns TSArray are pandas ExtensionArray

Advantages

GeoPandas compatible:

No geometries are repeated

Time series storage

TStore: hierarchically-structured specification to efficiently store time series using Apache Parquet
🚧 when geometries are present, use GeoParquet

Consider k years of temperature and precipitation data form n stations. Then, the TStore looks like:

<base_tstore_dir>
├── <station-id-1>
│   ├── <temperature>
│   │   ├── <year-1>
│   │   │   ...
│   │   └── <year-k>
│   └── <precipitation>
│       ├── <year-1>
│       │   ...
│       └── <year-k>
...


...

└── <station-id-n>
    ├── <temperature>
    │   ├── <year-1>
    │   │   ...
    │   └── <year-k>
    └── <precipitation>
        ├── <year-1>
        │   ...
        └── <year-k>

Flexibility of TStore

We can …

have multiple temporal partitioning, e.g., by month, year/month…, different partitioning by variable…
TStore structure, e.g., “variable-station” instead of “station-variable”

Advantages

TS objects are loaded into the Apache Arrow memory format
➡️ zero-copy conversion to pandas or polars dataframes.

Example

5 years of 10 min observations from the 33 Agrometeo stations¹ in the Canton of Vaud, Switzerland:

	variable	temperature	water_vapour	precipitation
station	time
1	2019-06-01 00:00:00	17.0	57.0	0.0
	2019-06-01 00:10:00	16.5	60.0	0.0
	2019-06-01 00:20:00	16.3	59.0	0.0
…	…	…	…	…
305	2024-04-30 23:30:00	14.9	74.0	0.0
	2024-04-30 23:40:00	15.3	69.0	0.0
	2024-04-30 23:50:00	15.3	67.0	0.0

8534361 rows × 3 columns

import tstore

tstore_dir = "agrometeo-tstore"
variables =...

tslong = tstore.TSLong(long_ts_df)
tslong.to_tstore(
    tstore_dir,
    variables,
    # TSTORE options
    partitioning="year",
    tstore_structure="id-var"
)

Resulting TStore directory structure:

agrometeo-tstore/
├── tstore_metadata.yaml
├── _attributes.parquet
├── 96/
│   └── temperature/
│       ├── _common_metadata
│       ├── _metadata
│       └── year=2020/
│           └── part-0.parquet
│       └── ...
...

...
└── 27/
    └── precipitation/
        ├── year=2019/
        │   └── part-0.parquet
        ├── year=2021/
        │   └── part-0.parquet
        ├── year=2022/
        │   └── part-0.parquet
        ├── year=2023/
        │   └── part-0.parquet
        └── year=2024/
            └── part-0.parquet

Some stats

CSV: write in 133 s, file size 310.5 MB, read in 7.9 s
TStore: write in 4.6 s 🚀, file size 249.9 MB (snappy compression, with 194.4 MB). Reading:
whole TStore into long data frame: 23 s
single variable: 2.28 s
single variable, single station: 0.03 s 🚀

Roadmap

geopandas and geoparquet support
time filters to read only the required data
implement more advanced TS/spatial operations, e.g., groupby/apply, regularize, resampling, rolling window…

Thank you

Slides (and notebook): martibosch/tsdf-geopython-2024

Repository: ltelab/tstore
